Heavy Duty Machines

Power :10.6kw

Voltage: 380V

Working speed:12/14/18m/min

board thickness:12~60mm

pvc thickness:0.4~3mm

board width:>=60mm

working pressure:0.6Mpa

Overall size:3900*750*1350mm

Weight :1100kg

Functions:Premilling, gluing, end cutting, fine

trimming, scrapping and polishing

Max Cutting Length:3200mm

Max Cutting Width:1250mm

Max Cutting height(300mm):80mm Max cutting

thickness of 45 degree:60mm Main saw blade

diameter:300mm(250~300mm) Scoring blade

diameter:120mm Speed of main saw

spindle:4000~6000rmp/min Main spindle

diameter:30mm Speed of scoring saw

blade:7000~8000rmp/min Scoring spindle

diameter:20mm titling saw

blade:90degree/0~45degree M

Model MY07B Roller

voltage 220V

Frequency 50Hz

Min diameter 18mm

Working pressure 3~6kg/cm square

Max bandingHeight 10~50mm

Max banding Thickness 0.3~3.0mm

glue on: Double glue On

Speed: 0~6m/min

machine Size/weight 50x50x50cm/30kg

Package wooden case Package Size/weight 53x53x56cm/40kg

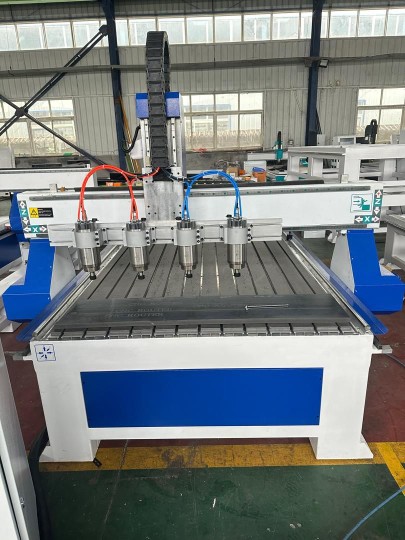

#Heavy steel welding structure

#RichAuto A18 DSP 4 axis control system

#2.2KW water cooling spindle x 4

#300MM rotary axis x 4, rotary axis length 1000mm

#T-slot table

#Leadshine step motor and drivers

#Taiwan 25 HIWIN guide rails

#Taiwan TBI ball screw transmission

#Fuling inverter

#Powermill/Artcam software

#High precision rack and pinion

#France Schneider contactor and leakage protector

#Japan Omron limit switch

#Automatic oil Lubrication system

#Double bag dust collector

#Tool sensor

#Water cooling system

#Voltage: 380V 3P 50HZ

Plasma metal cutting machine FMP 1530,whole

cast iron bed structure, working area

3000*1500mm, startfire control system, Automatic

THC height controller,LGK200A plasma

source,step motor and leadshine drivers, Taiwan

HIWIN guide rails,blade tooth mesa table and roll

ball,high precision rack and pinion,FASTCAM

nestling software, separate control box, plasma

nozzle and electrodes (10set),G-

code,AC380V/50HZ... All parts are complete, have

operation manual, software and extra spare parts.

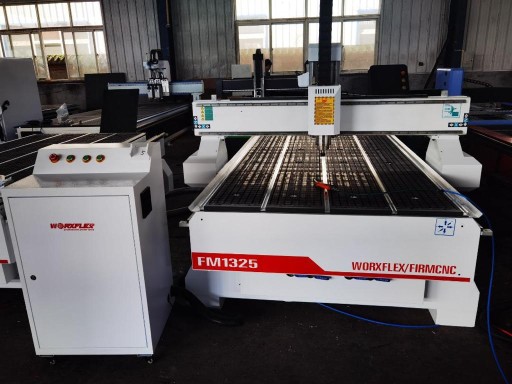

Heavy steel welding structure, working area

2500*1300*200mm,RichAuto A11 DSP control

system,3.0kw water cooling spindle, Vacuum and

T-slot table,5.5kw vacuum pump,ledshine stepper

motor and drivers,Taiwan HIWIN guide rails,

Taiwan ball screw transmission,fuling inverter,high

precision rack and pinion, France Schneider

contactor and leakage protector, Japan Omron

limit switch, Automatic oil lubrication system,

Double bag dust collector,Tool sensor,water

cooling system,380v 3P 50HZ.

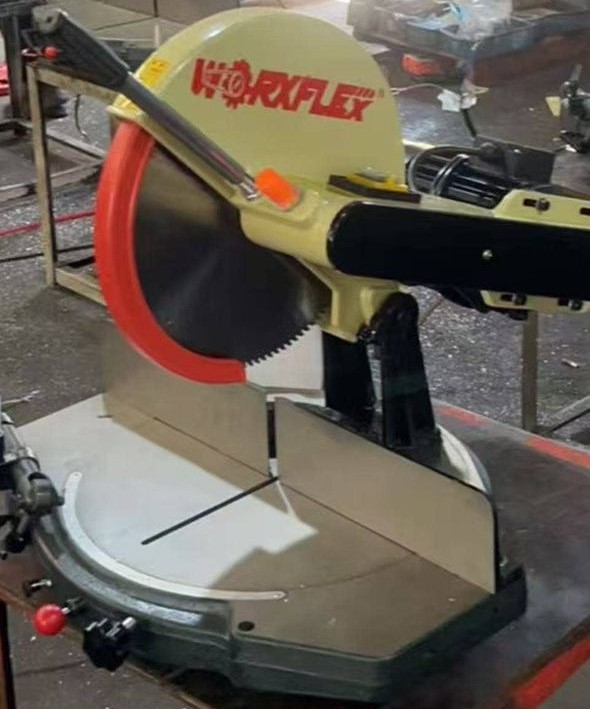

Purpose and structural features:

This machine is a new and practical product specifically designed for small and

medium-sized customers. Due to its high processing accuracy, compact structure, easy handling,

convenient operation, and adaptability to any site, it is highly welcomed by customers

Technical Specifications:

Operating voltage: 380V/220V

Motor power: 1.1KW

Main shaft speed: 3600r/min

Saw blade size: Φ305*Φ25.4*3

Cutting range: 80*120mm/100*100mm

Overall dimensions: 650*650*1250mm

Operation method and precautions 一、Pre-start preparations

（1）Before use, it is essential to carefully inspect the

performance of the equipment and ensure the integrity of all
